STRANDS SIBERIA XP SR LED BAR 22″
STRANDS SIBERIA XP SR LED BAR 22″
STRANDS SIBERIA XP SR LED BAR 22″
Get ready to experience the new Siberia XP Single Row LED bar. This 22” model has an extended beam pattern with 1875 actual lumens in E-mode and 7150 in Xperience mode. This means a 65% higher output than previous models. A visual range of 300-602 meters creates high forward visibility, and the 5700 K color temperature ensures a crisp and clear illumination. The Siberia XP Single Row is easy to install thanks to the integrated relay and 2500 mm cable. It is incredibly durable and can withstand vibrations, rough roads, and hard use. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water and a new powder coating. Siberia XP is covered by Strands Lighting Divisions’ 3-year function warranty and E-approved according to regulations R148(R7), R149(R112), and ECE R10.
Voltage: 10-32V DC
Consumption: E-mode: 25W / Xperience mode : 102W

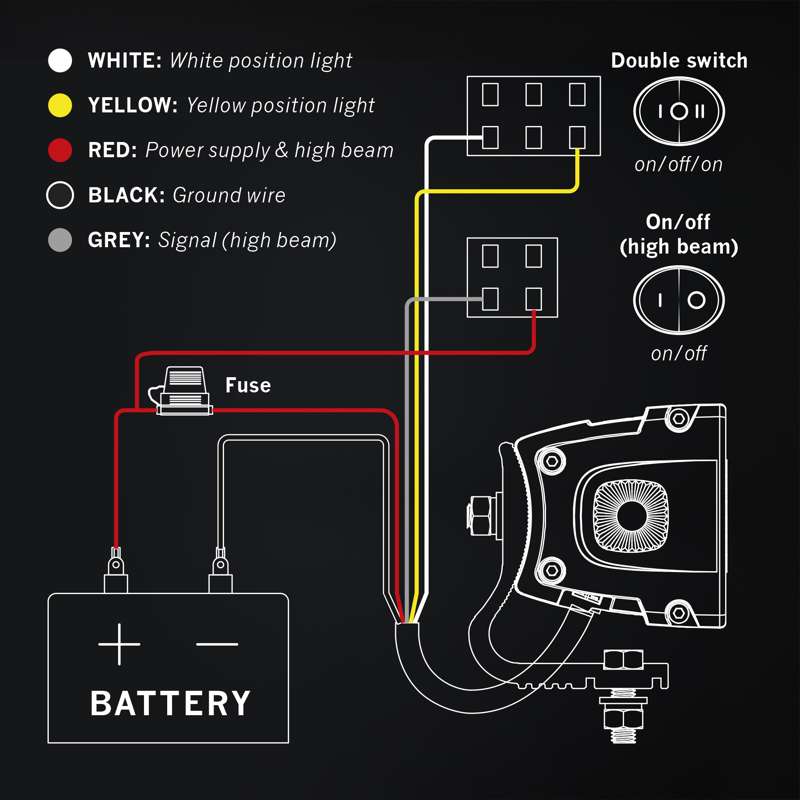

Functions: High beam, white and yellow position light, separate hello function for position light
Consumption specific function: White position light: 9,2W, Yellow position light: 9,2W
Actual lumen: E-mode: 1875lm / Xperience mode: 7150lm
1 lux @: E-mode: 300m / Xperience mode: 602m
Color temperature: 5700K
Beam pattern: Extended beam
Beam angle: 14,4
Connection: Cable
Cable length: 2500mm
Color housing: Black
Color lens: Clear
Color LED´s: White/yellow
Material bracket: Aluminium
Material housing/chassi: Aluminium
Material lens: Polycarbonate
Length: 555,6mm
Depth: 55,5mm
Height: 45mm
Height including bracket: 64,5mm
Weight: 1,8kg
IP-class: IP68/69K
Operating temperature: -35 - +65°C
E-approved: Yes
According to regulation: ECE R148(R7), R149(R112)
Reference number: 20
EMC: ECE R10
