STRANDS SIBERIA X DRIVING LIGHT 9″
STRANDS SIBERIA X DRIVING LIGHT 9″
STRANDS SIBERIA X DRIVING LIGHT 9″
Emitting 1430/13350 incredible actual lumens, the X 9” will light up the darkest night. It has an extended beam with an incredible range of 319/881 meters, ensuring high forward illumination. This makes Siberia X a powerful companion on challenging roads. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the headache of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10, CISPR25 Class 3.

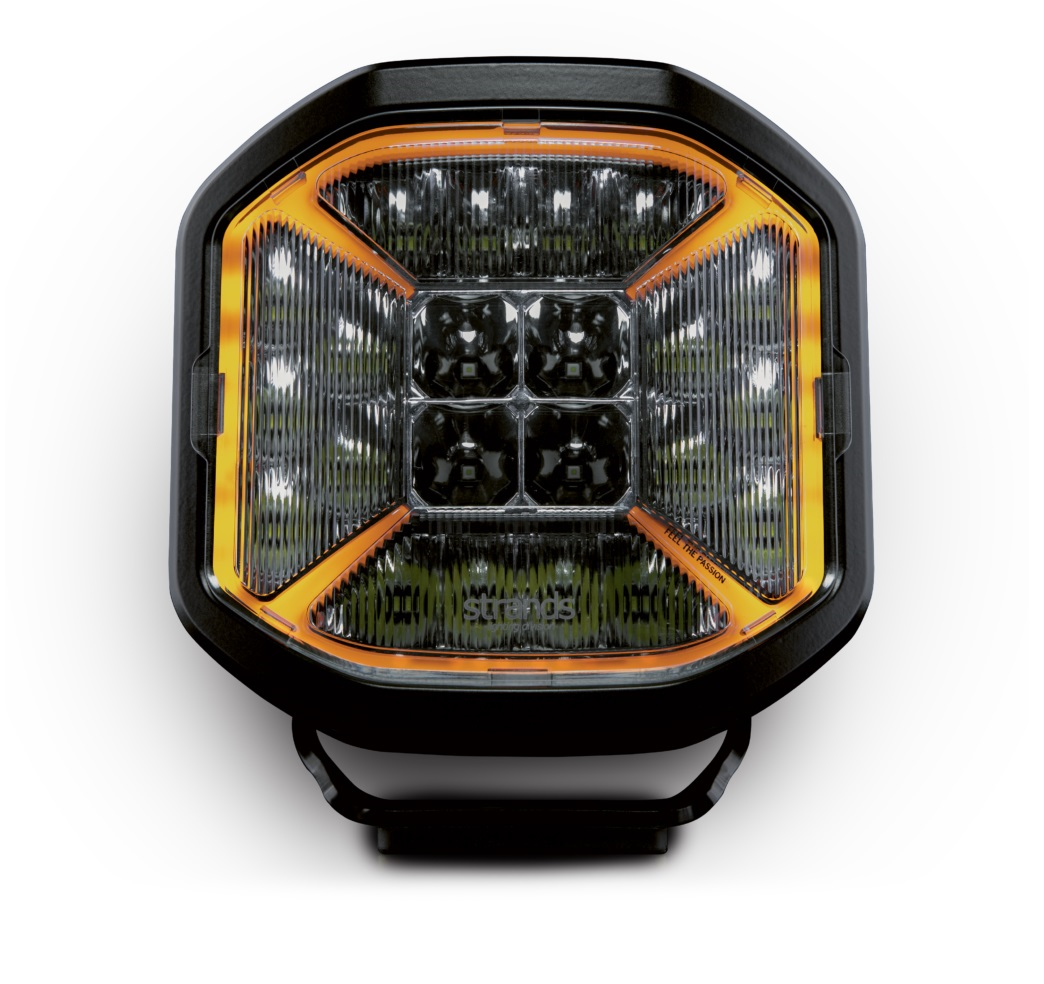

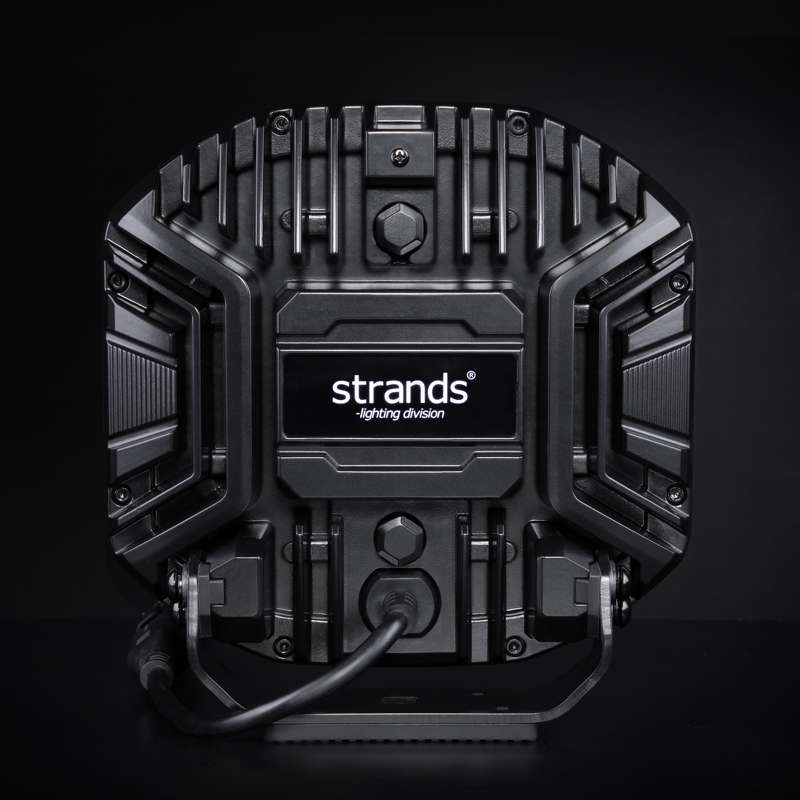

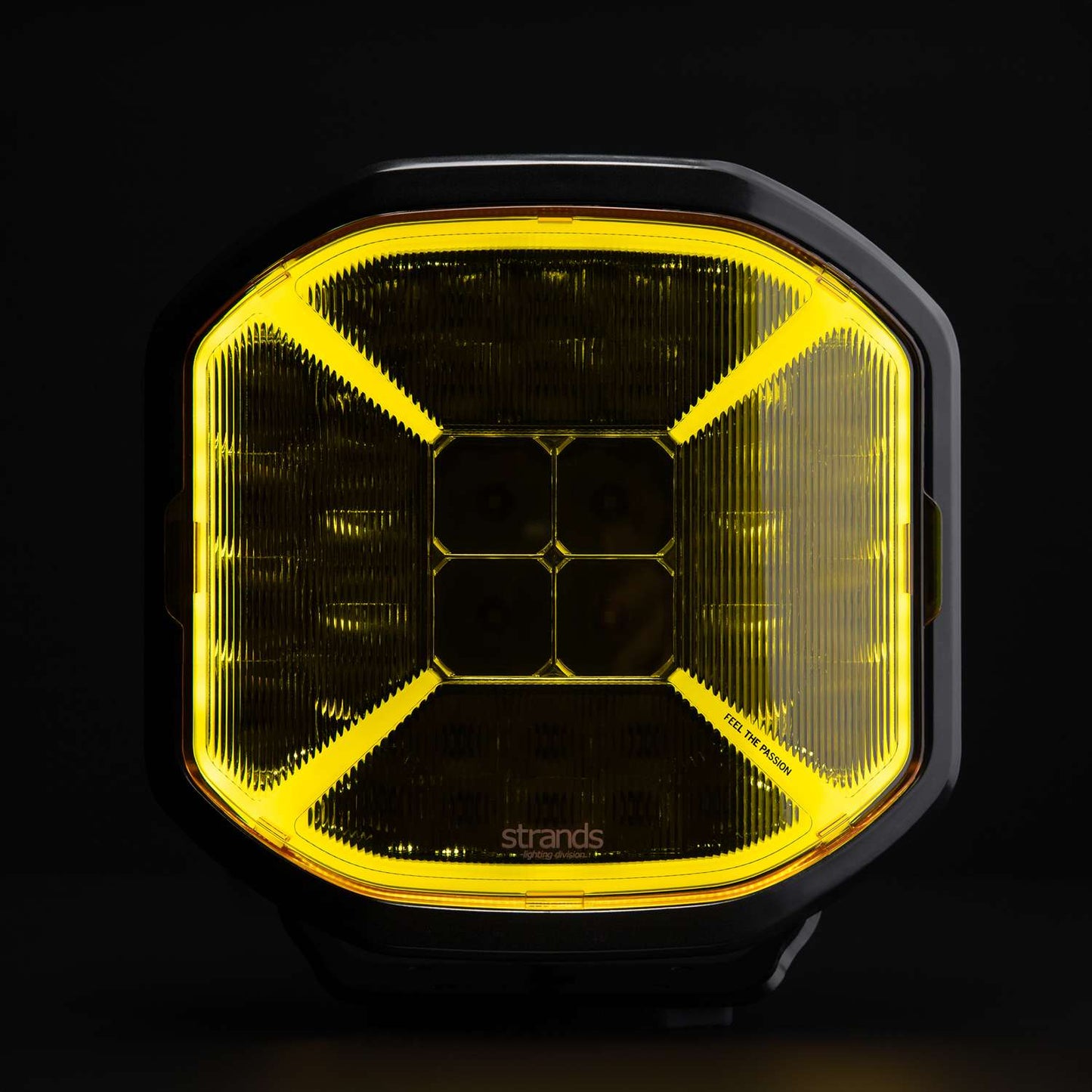

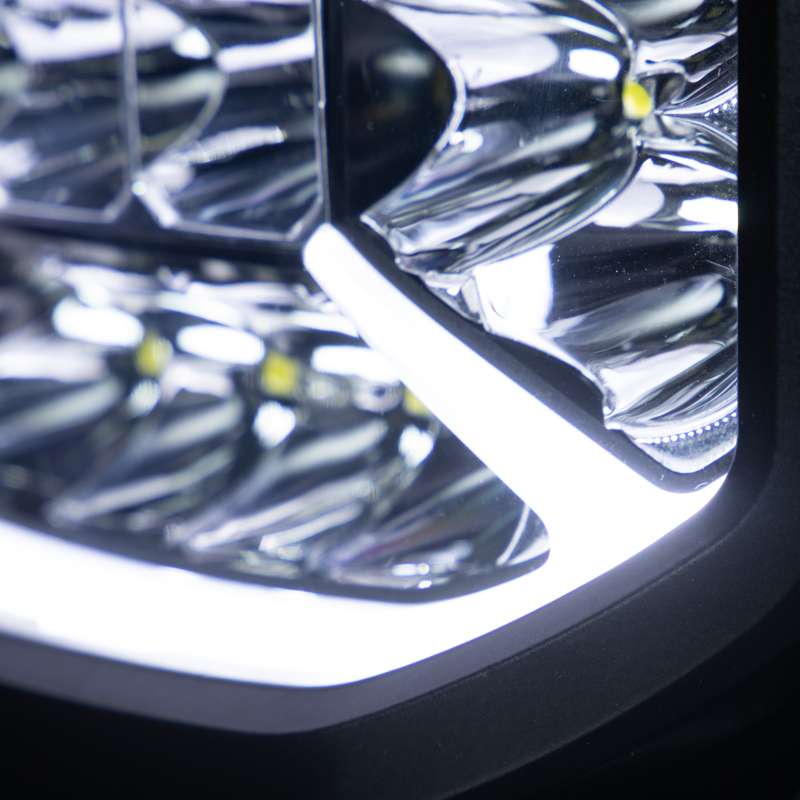

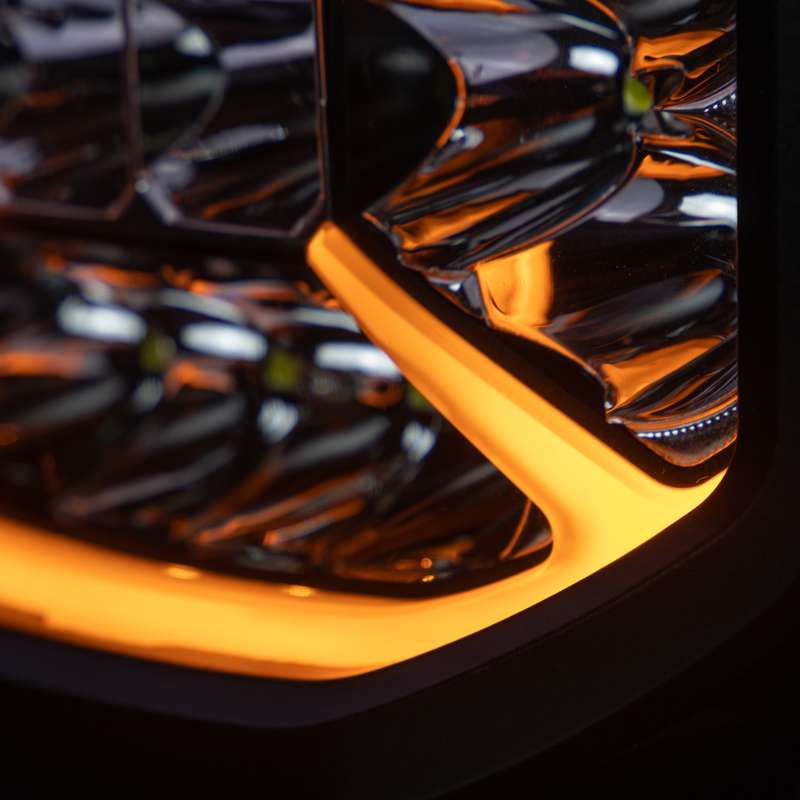

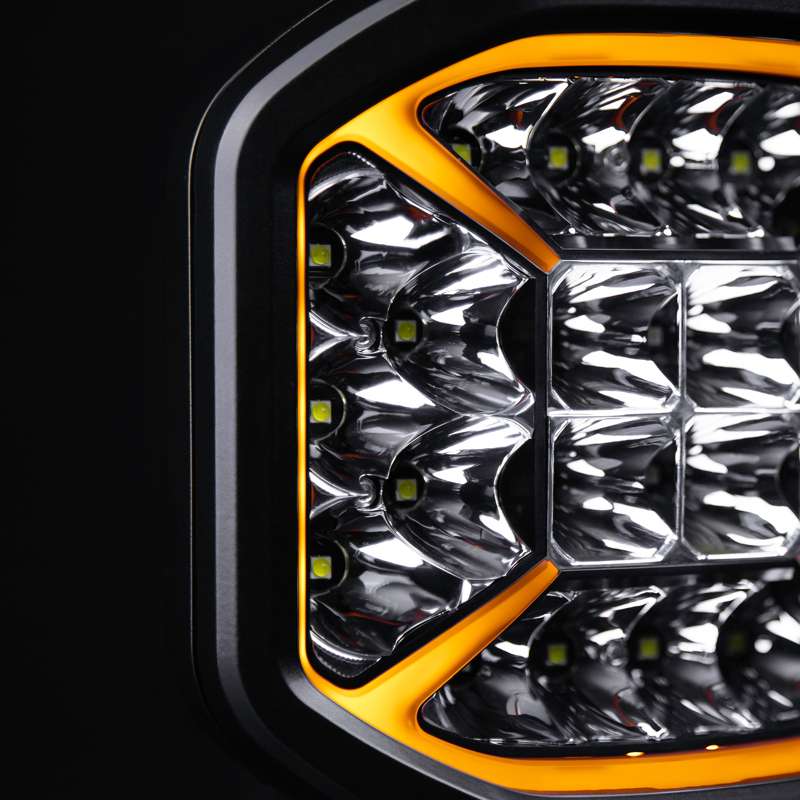

Like all Xperience products, the X driving light has a unique visual expression and a wholly reimagined shape. The square shape of the housing invites a variety of installations, and the rounded sides of the lens illuminate the sides. The X-shaped duo position light is unexpected and compliments the lens’ shape; choose between white and amber position lights. A new Hello function, unique to the Xperience series, allows you to signal to fellow drivers on the road. Just flash your headlights twice, and the position lights’ Hello signal will activate. The position light shines through the back of the housing, creating an eye-catching effect from any angle.
Voltage: 10-32V DC
Theoretical effect: 190W
Consumption: E-mode:19W / Xperience mode: 164W
Functions: High beam, Amber and white position light, Separate Hello function for position light, logo light
Consumption specific function: White position light: 6,9W, Amber position light: 7,1W
Theoretical lumen: 18000lm
Actual lumen: E mode: 1430lm / Xperience mode: 13350lm
1 lux @: E-mode: 319m / Xperience mode: 881m
Color temperature: 5700K
Beam pattern: Long-distance beam
Beam angle: 9,7
Connection: DT-4PIN
Cable length: 150mm
Color housing: Black

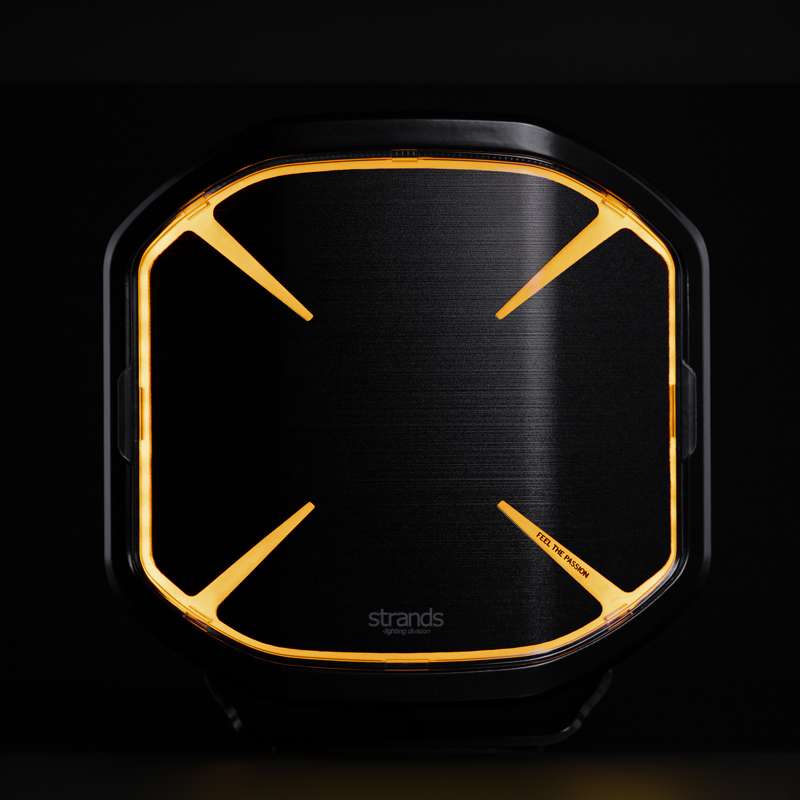

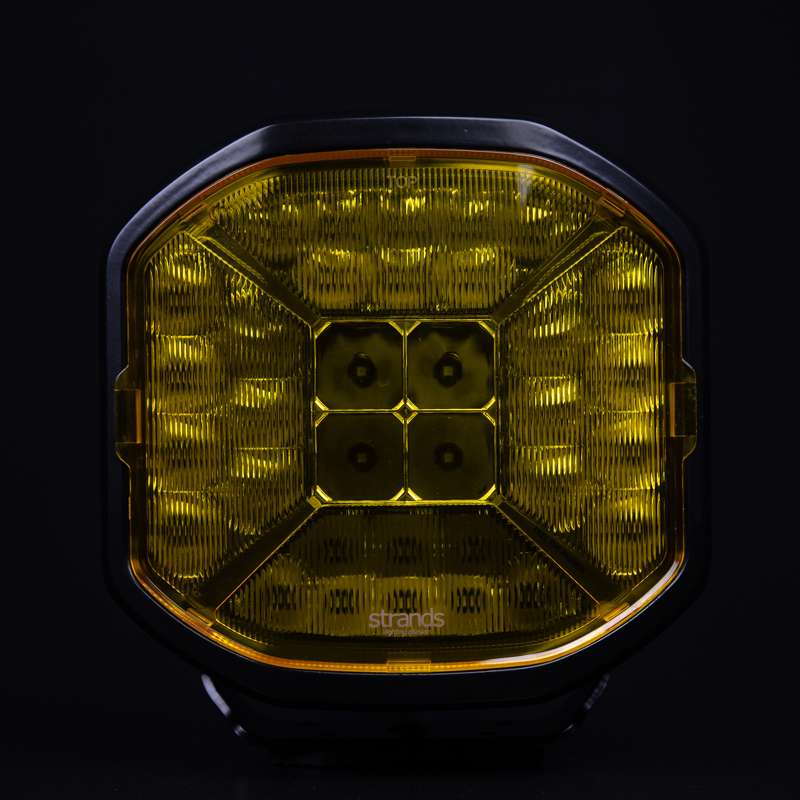

Color lens: Main lens: clear, External lens cover: black and yellow flood versions
Color LED´s: White/amber
Material bracket: Stainless steel
Material housing/chassi: Aluminium
Material lens: Polycarbonate

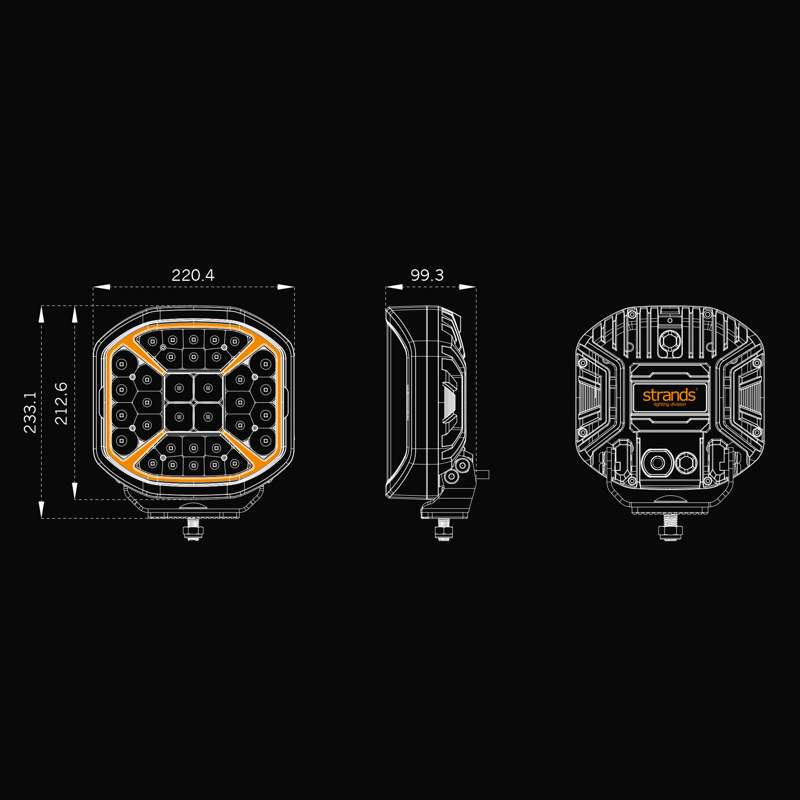

Length: 220,4mm
Depth: 99,3mm
Height: 212,6mm
Height including bracket: 233,1mm
Weight: 3,555kg
IP-class: IP68/69K
Operating temperature: -30 - +65°C
E-approved: Yes
According to regulation: ECE R148(R7), R149(R112)
Reference number:20
EMC: ECE R10, CISPR25 Class 3
