STRANDS SIBERIA X DRIVING LIGHT 7″

STRANDS SIBERIA X DRIVING LIGHT 7″

Emitting 1640-7430 incredible actual lumens, the X 7” will light up the darkest night. It has an optimized beam with an incredible range of 308-620 meters, ensuring a balanced illumination to the front and sides. This makes Siberia X a powerful companion on challenging roads. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the headache of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10, CISPR25 Class 3.

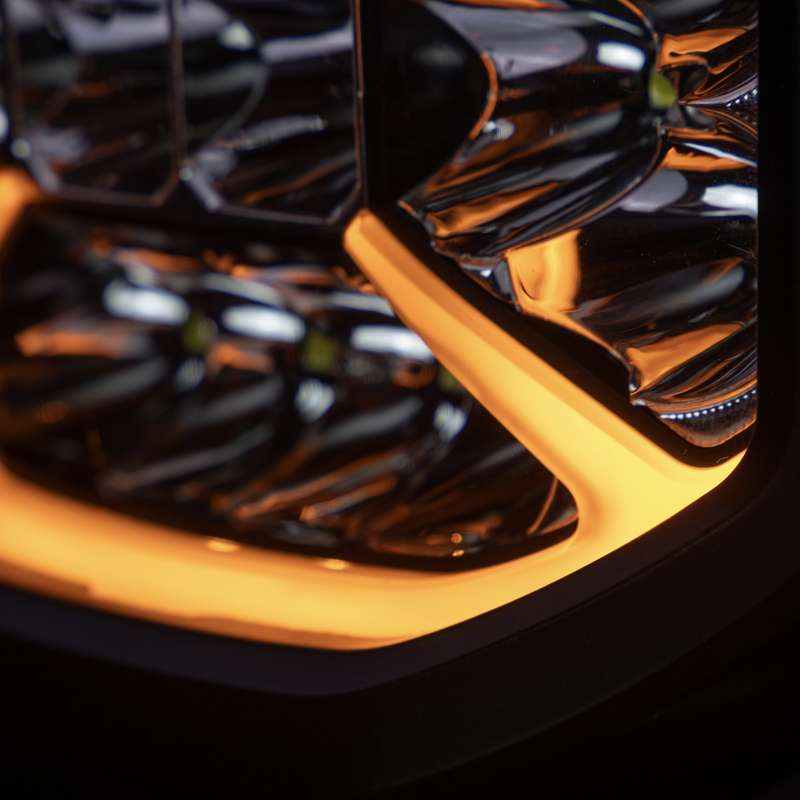

Like all Xperience products, the X driving light has a unique visual expression and a wholly reimagined shape. The square shape of the housing invites a variety of installations, and the rounded sides of the lens illuminate the sides. The X-shaped duo position light is unexpected and compliments the lens’ shape; choose between white and amber position lights. A new Hello function, unique to the Xperience series, allows you to signal to fellow drivers on the road. Just flash your headlights twice, and the position lights’ Hello signal will activate. The position light shines through the back of the housing, creating an eye-catching effect from any angle.



Voltage: 10-32V DC

Theoretical effect: 130W

Consumption: E-mode:22W / Xperience mode: 96W

Functions: High beam, Amber and white position light, Separate Hello function for position light, logo light

Consumption specific function: White position light: 6W, Amber position light: 6,8W

Theoretical lumen: 10000lm

Actual lumen: E-mode: 1640lm / Xperience mode: 7430lm

1 lux @: E-mode: 308m / Xperience mode: 620m

Color temperature: 5700K

Beam pattern: Extended beam

Beam angle: 10,7

Connection: DT-4PIN

Cable length: 150mm

Color housing: Black

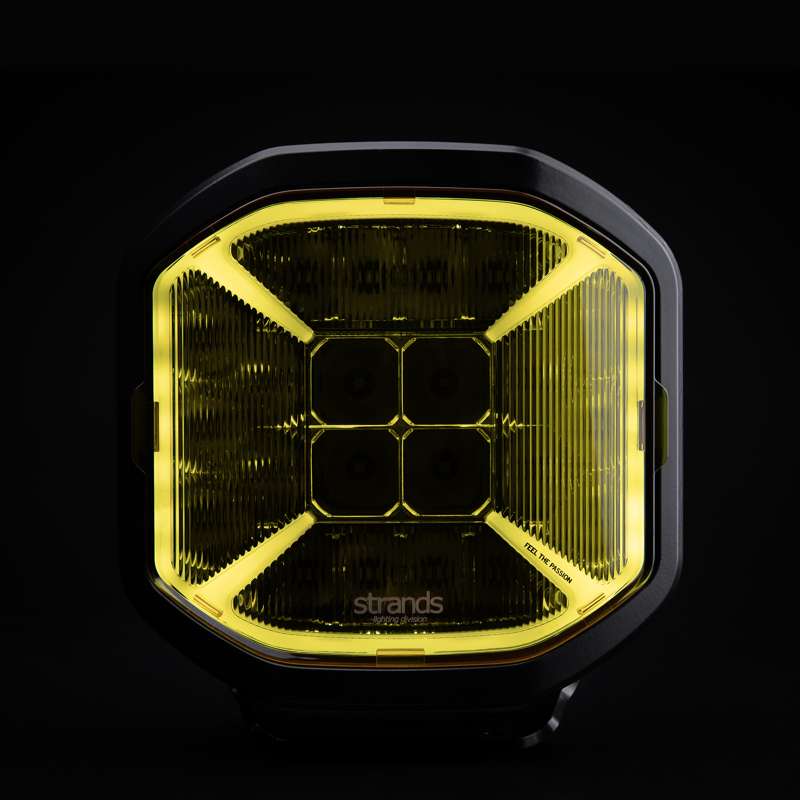

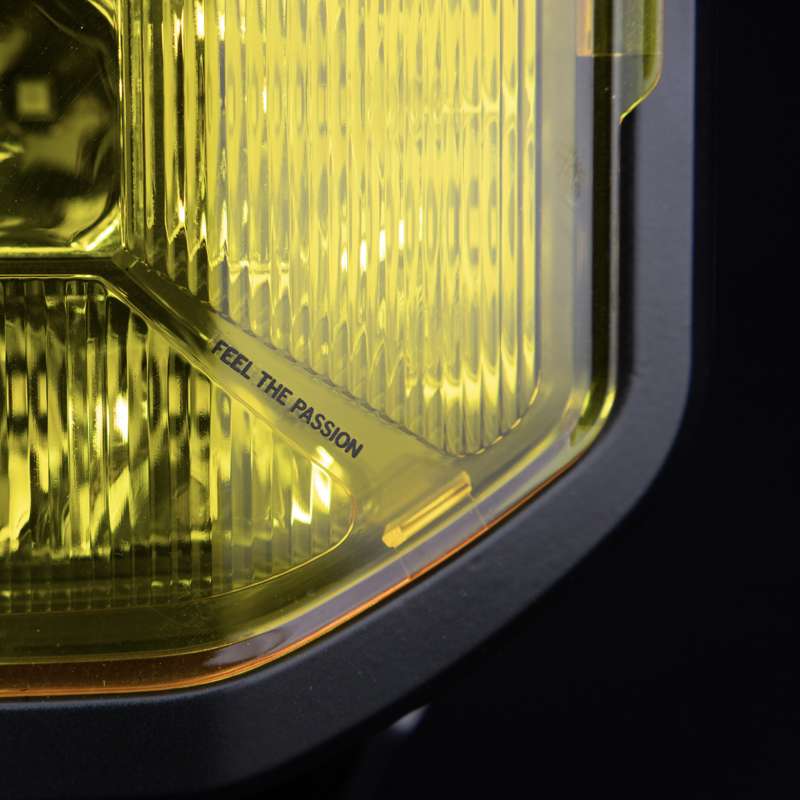

Color lens: Main lens: clear, External lens cover: black and yellow flood versions

Color LED´s: White/amber

Material bracket: Stainless steel

Material housing/chassi: Aluminium

Material lens: Polycarbonate

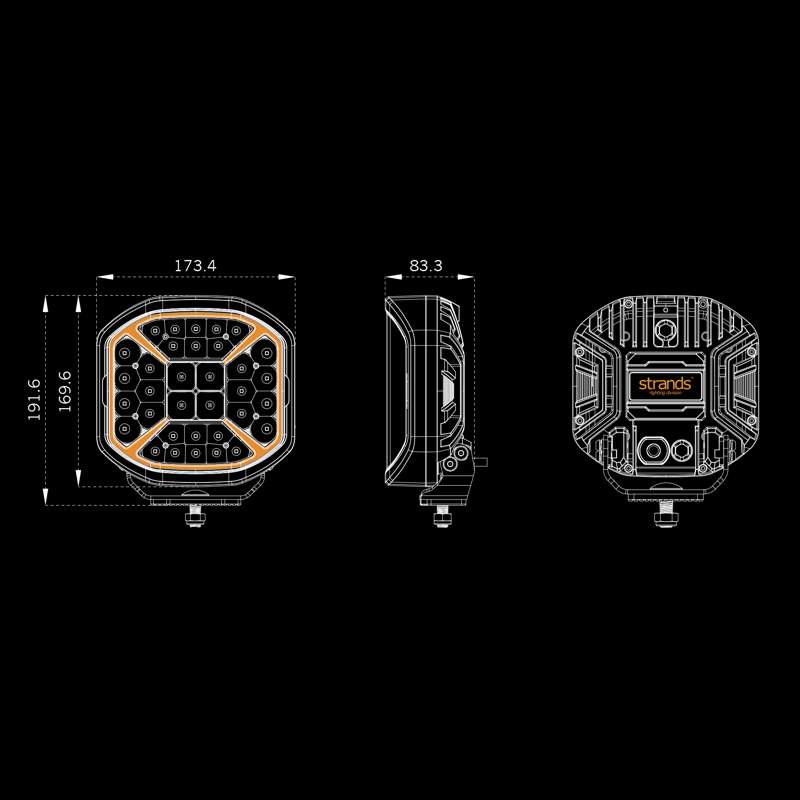

Length: 173,4mm

Depth: 83,3mm

Height: 169,9mm

Height including bracket: 191,6mm

Weight: 2,322kg

IP-class: IP68/69K

Operating temperature: -30 - +65°C

E-approved: Yes

According to regulation: ECE R148(R7), R149(R112)

Reference number: 20

EMC: ECE R10, CISPR25 Class 3



Installation specification



Black cable: - (Negative)

Red cable: + (High-beam)

White cable: + White Position light(Positive)

Yellow cable: + Amber Position light(Positive)

Included in package: Black cover, yellow flood cover, brackes,Screws, washers, bolts,rubber pad,cover remover tool
