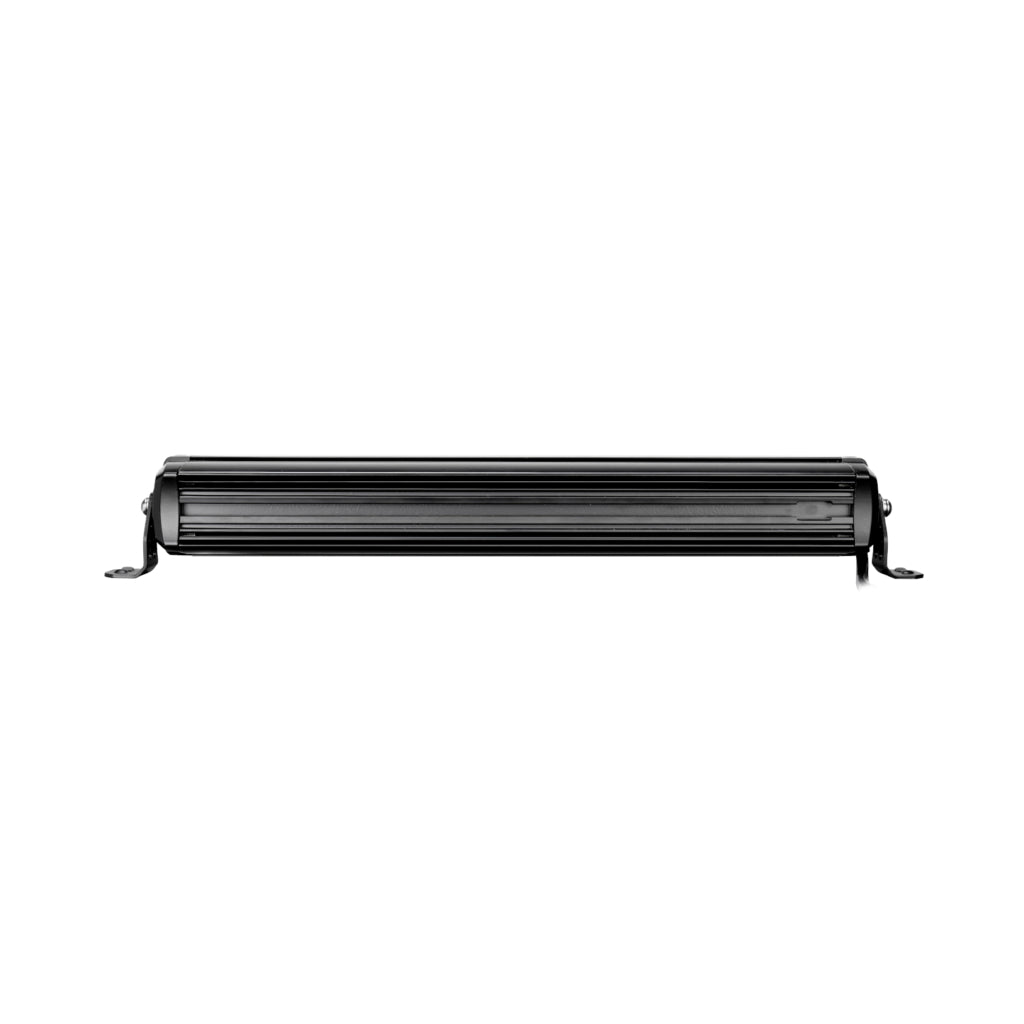

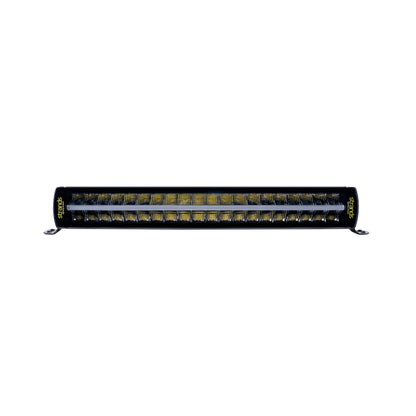

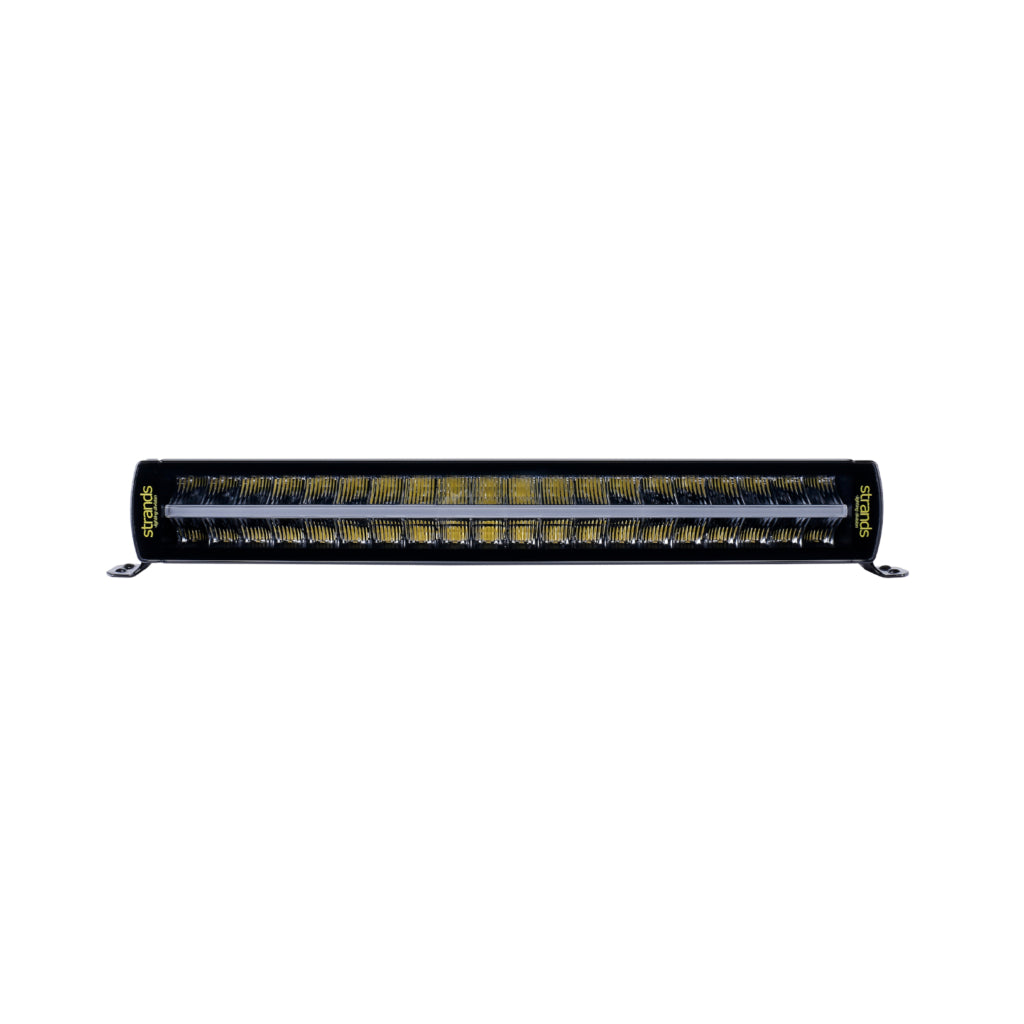

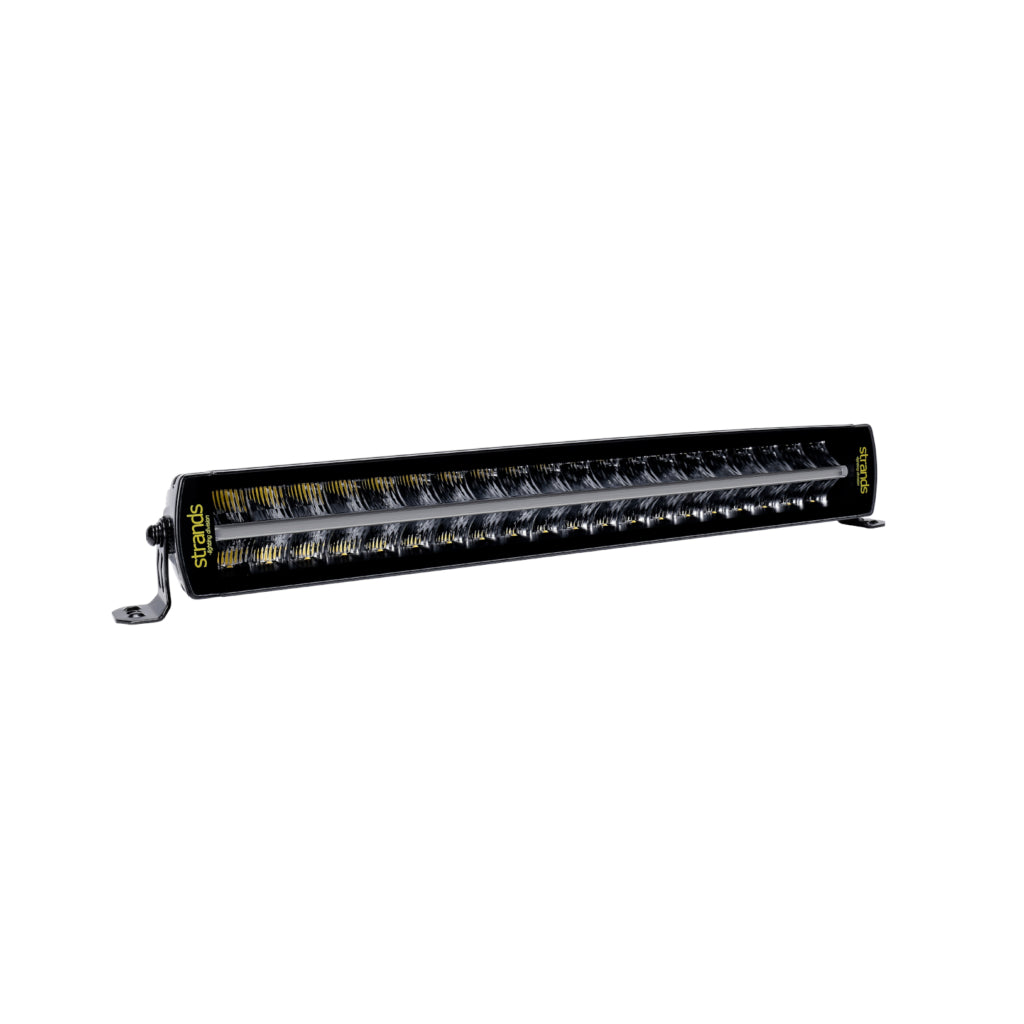

STRANDS SIBERIA OUTLAW UDX 22″ LED BAR
Nothing goes up against the ultimate driving experience. Siberia Outlaw UDX 22” is a double-row LED bar that pushes the boundaries to give you a revolutionary experience you haven´t witnessed before.
Siberia Outlaw UDX 22” is a total knockout from previous LED bars regarding the light experience. Standing out from the crowd by giving the driver the option to switch between two modes – the Xperience mode and the E-approved mode. The driver activates the Xperience mode by turning on the full beam for two seconds and then flashing three times. To switch to E-approved mode, start the car and repeat the procedure. This ensures the driver’s safety and that the switch doesn´t happen by mistake.

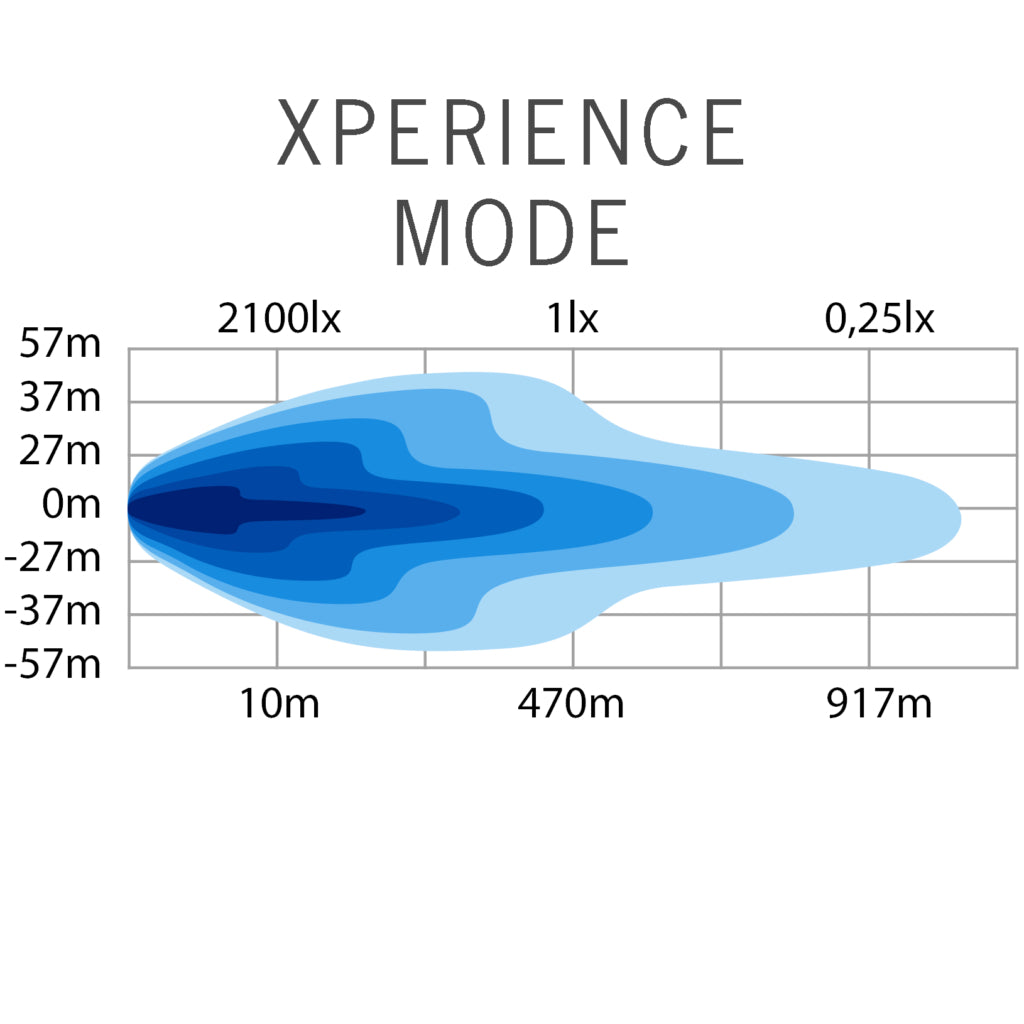

The Xperience mode provides the ultimate beam pattern experience with 22 900 actual lumens and a consumption of 215 W. Delivering a wide, long, and massive light output for the first 500 meters. It will be light literally everywhere, like nothing you have experienced before.

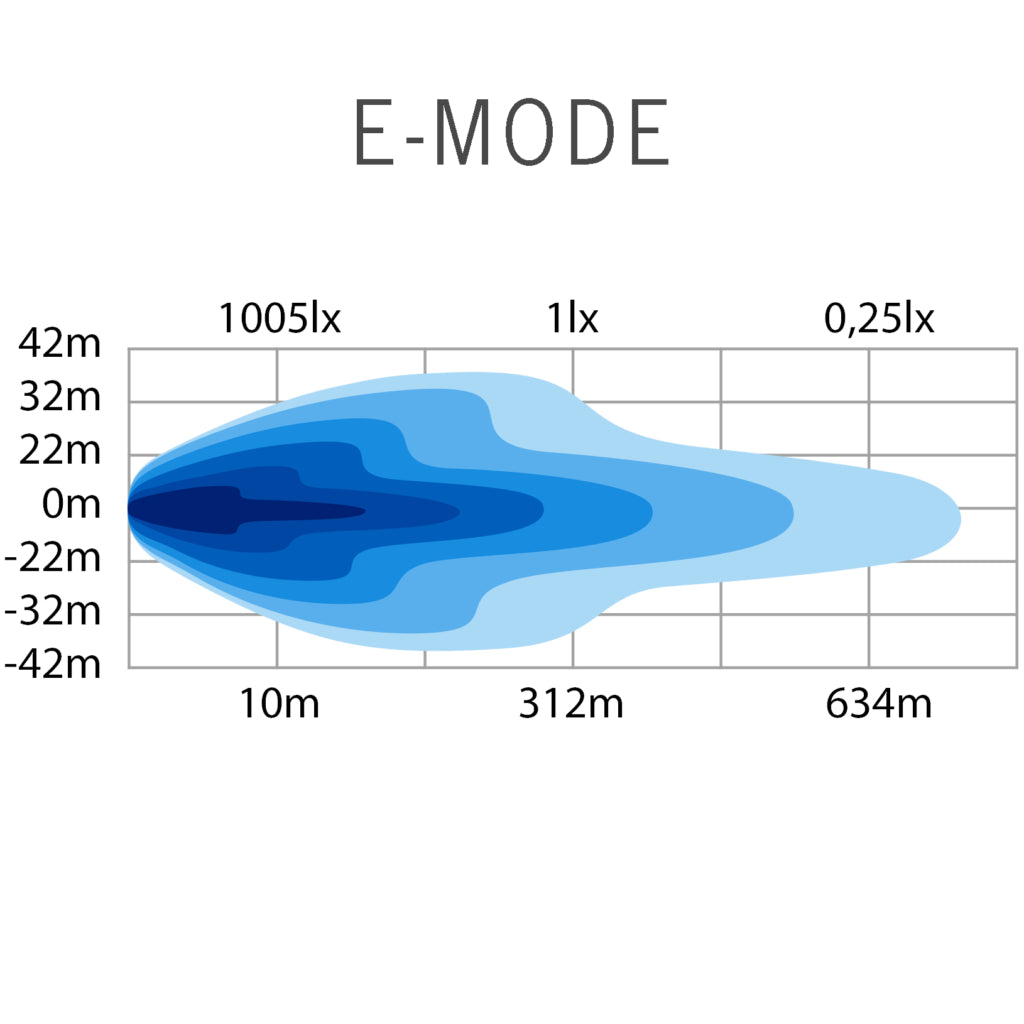

The E-approved mode delivers an extensive and powerful light with 10 889 actual lumens and a consumption of 102 W. The LED bar also has a superb color temperature of 5000 Kelvin, which gives you an excellent view of your surroundings, and you will see everything you need ahead of you.

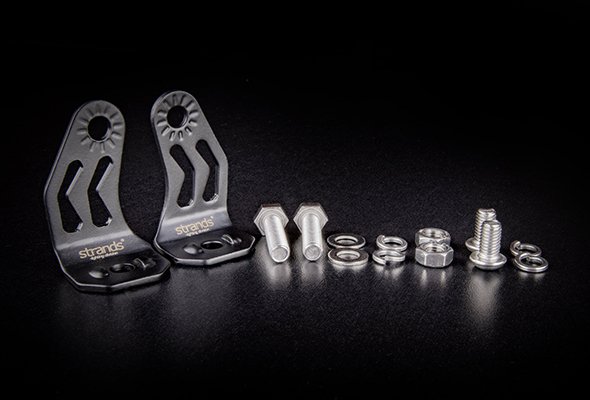

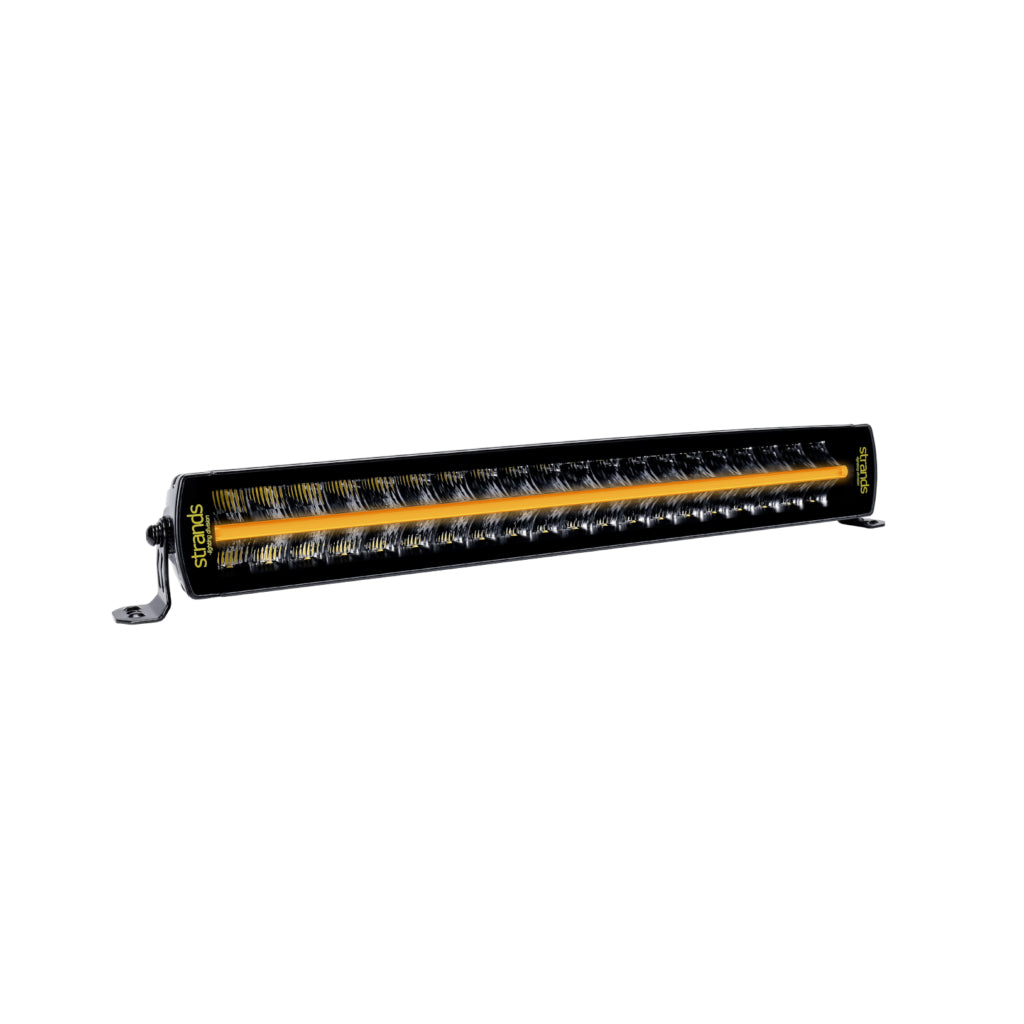

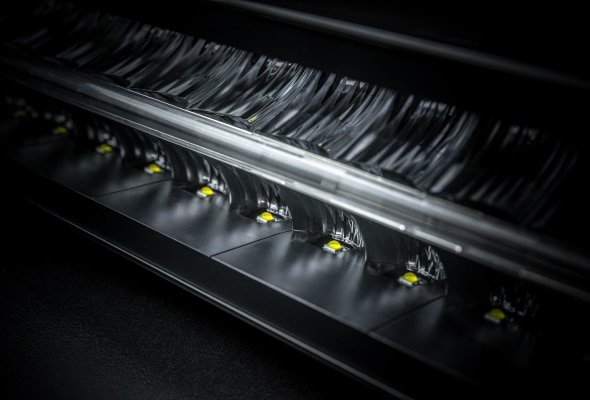

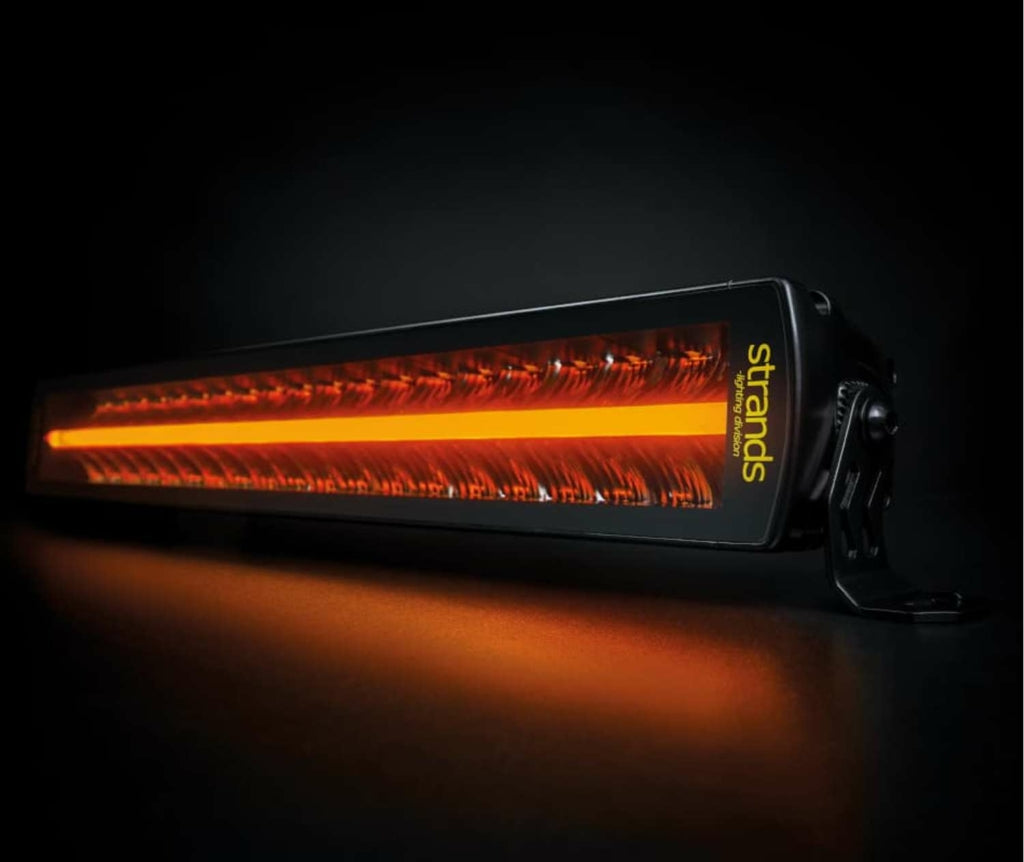

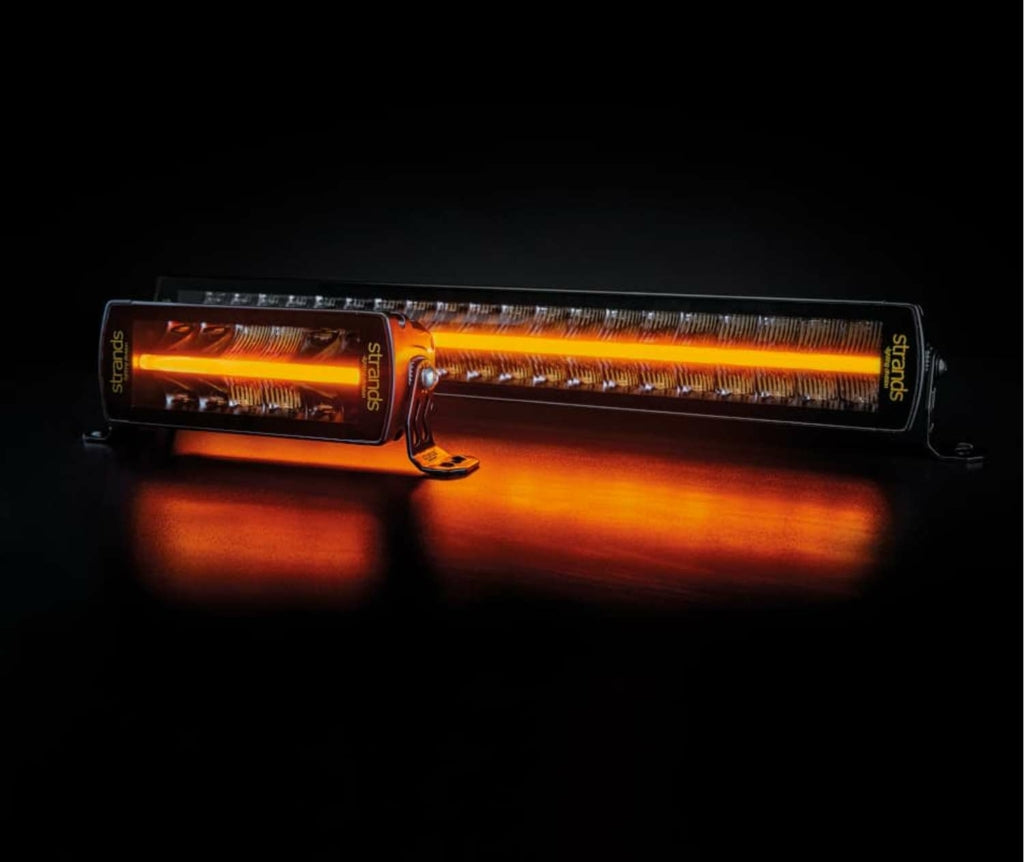

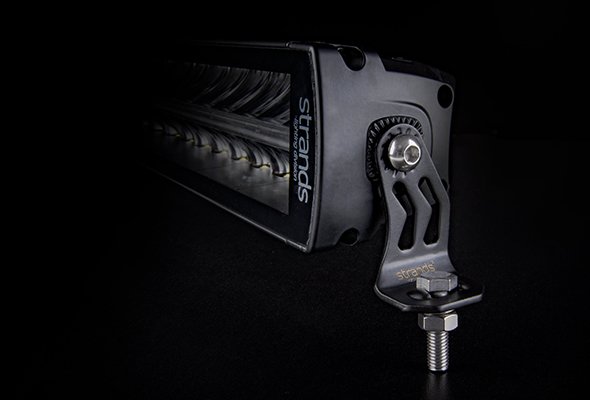

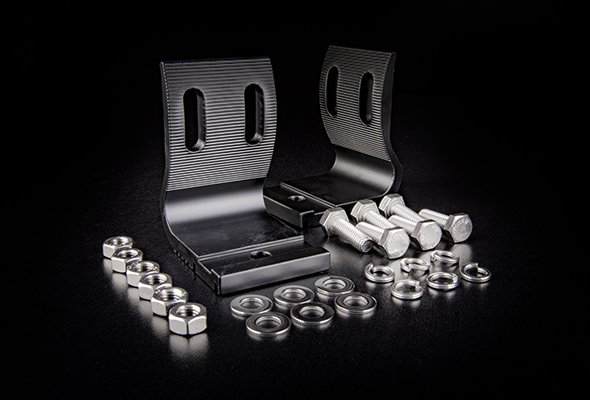

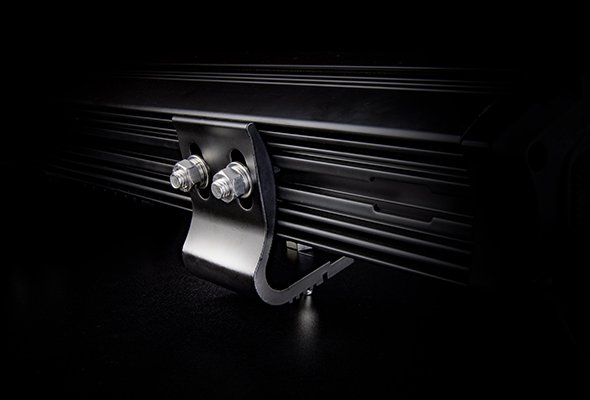

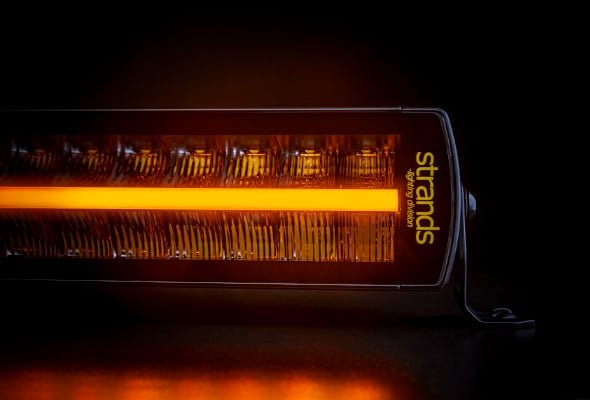

Siberia Outlaw UDX is created of high-end components. Shaped by precision, development, and world-class technology and made by the best diodes, housing, and protecting UV coating. Standing out from the crowd with the Siberia Outlaw significant yellow logotype and the typical Siberia design with no edge lens and characteristic position light. Choose between the moonlight in white or the sunrise in amber. Mount UDX with the included side and back brackets or clamp brackets (purchased separately, part. no. 809185). With UDX mounted on your vehicle, you can always count on the ultimate driving experience.
Voltage (V DC): 10-32V DC
Theoretical lumen: 48000
Actual lumen: E-approved mode: 10889 Experience mode: 22900

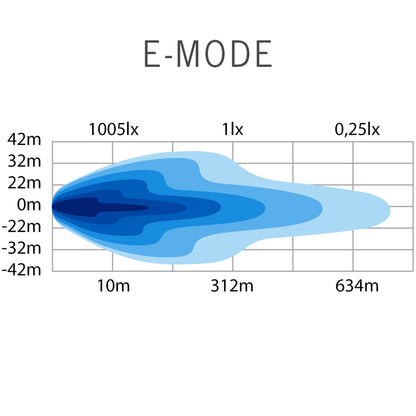

1 LUX @ m: E-approved mode: 312 Experience mode: 470
Color temperature (kelvin): 5000K
Beam pattern: Optimized beam
Position light: Yes
Connection: Cable
Cable length (mm): 1500
Color housing: Black
Color lens: Clear
Color LED´s: White and Amber
Material bracket: Stainless steel
Material housing/chassi: Aluminium
Material lens: Polycarbonate
Length (mm): 562
Depth (mm): 71,6
Height (mm): 76
Height including bracket (mm): 89
IP-class: 67/69K
Operating temperature: -30°C - +65°C
E-approved: Yes
According to regulation: ECE R148(R7),R149(R112)
Reference number: 25
EMC: ECE R10
