STRANDS FIREFLY LED BAR 10″

STRANDS FIREFLY LED BAR 10″



Allow us to introduce the Firefly LED bar 10”, seamlessly integrating with your vehicle while delivering exceptional performance. The result of cutting-edge engineering and our attention to detail.

The Firefly LED bar 10” is an absolute game-changer in LED innovation and design. With only 70 mm in depth and a height of 38.5 mm, this LED bar is remarkably slim, setting new standards with a unique design.

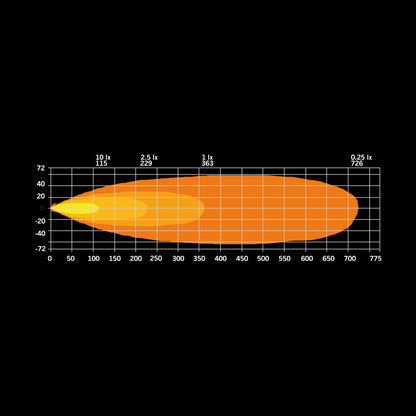

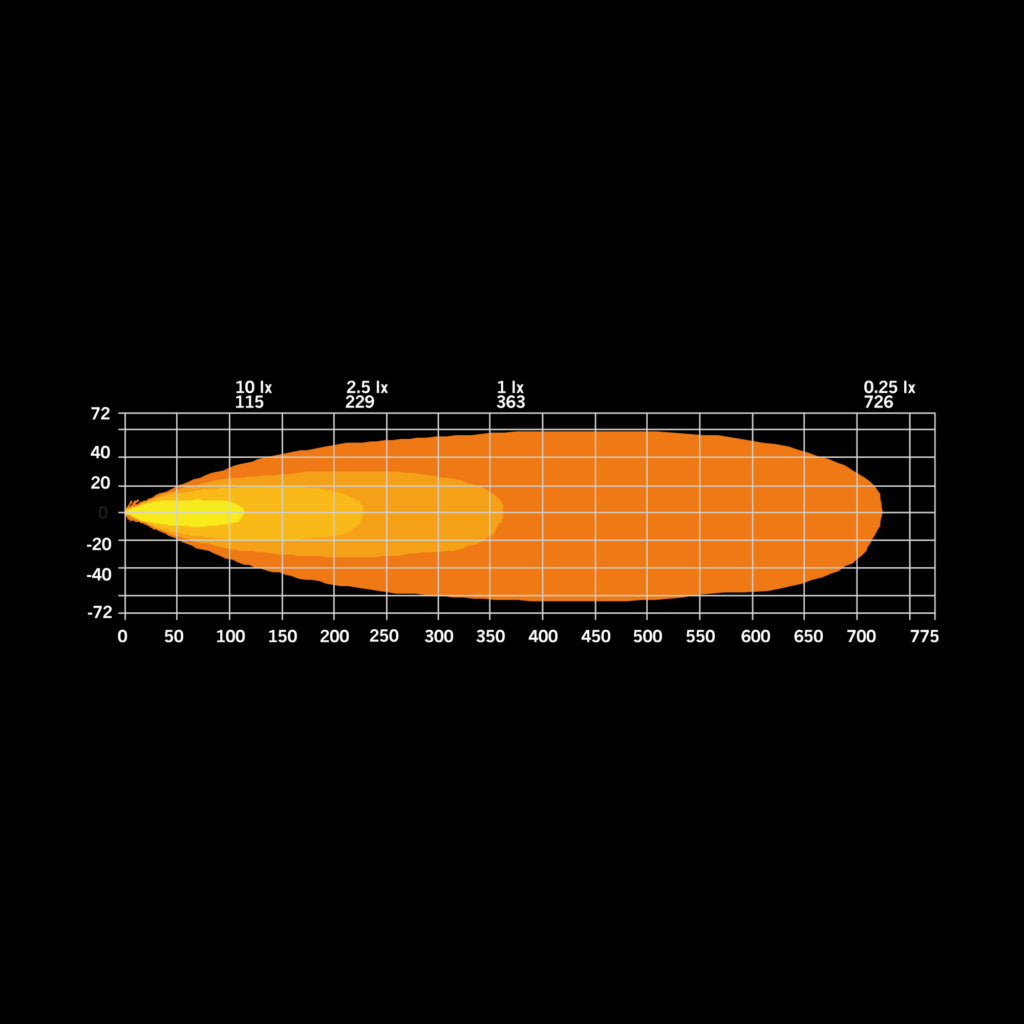

Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 5010 actual lumens and 1 lux at 363 meters. Ready to guide you forward with clarity and precision.

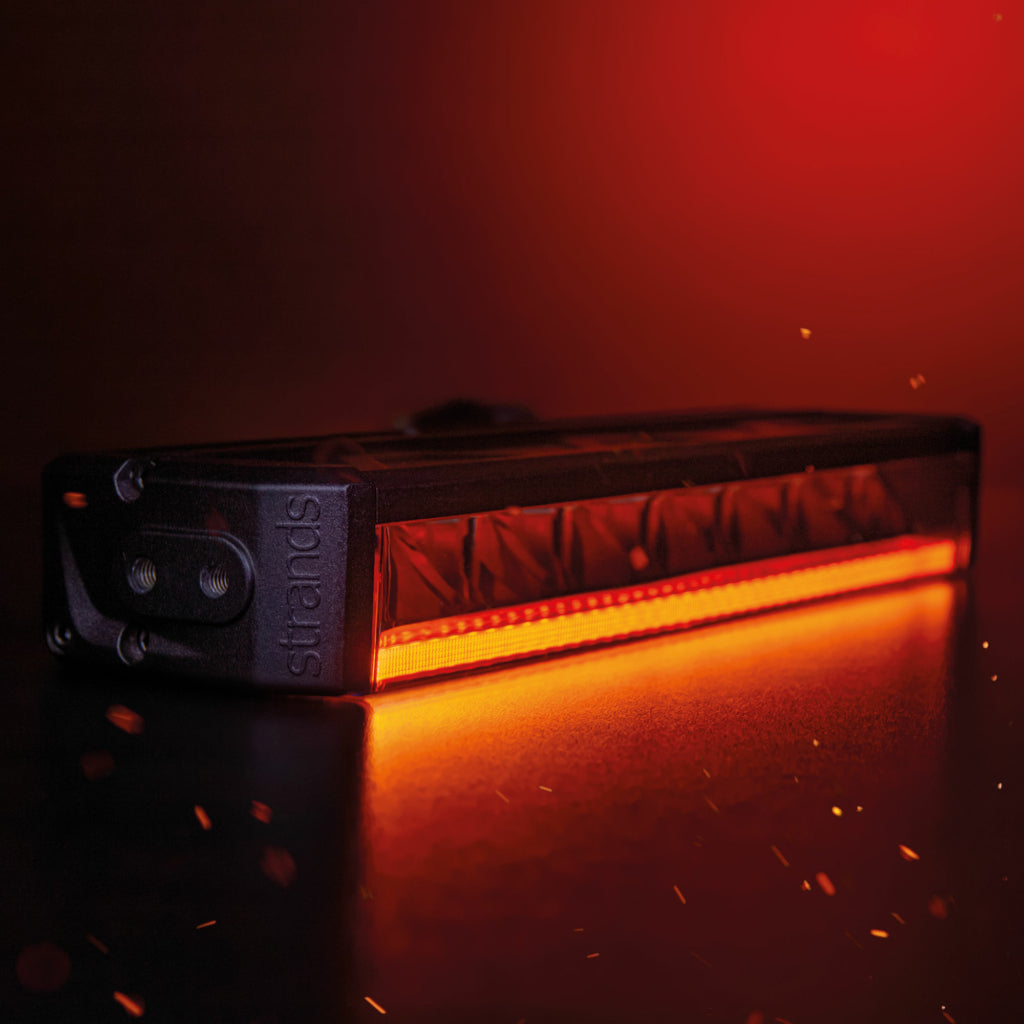

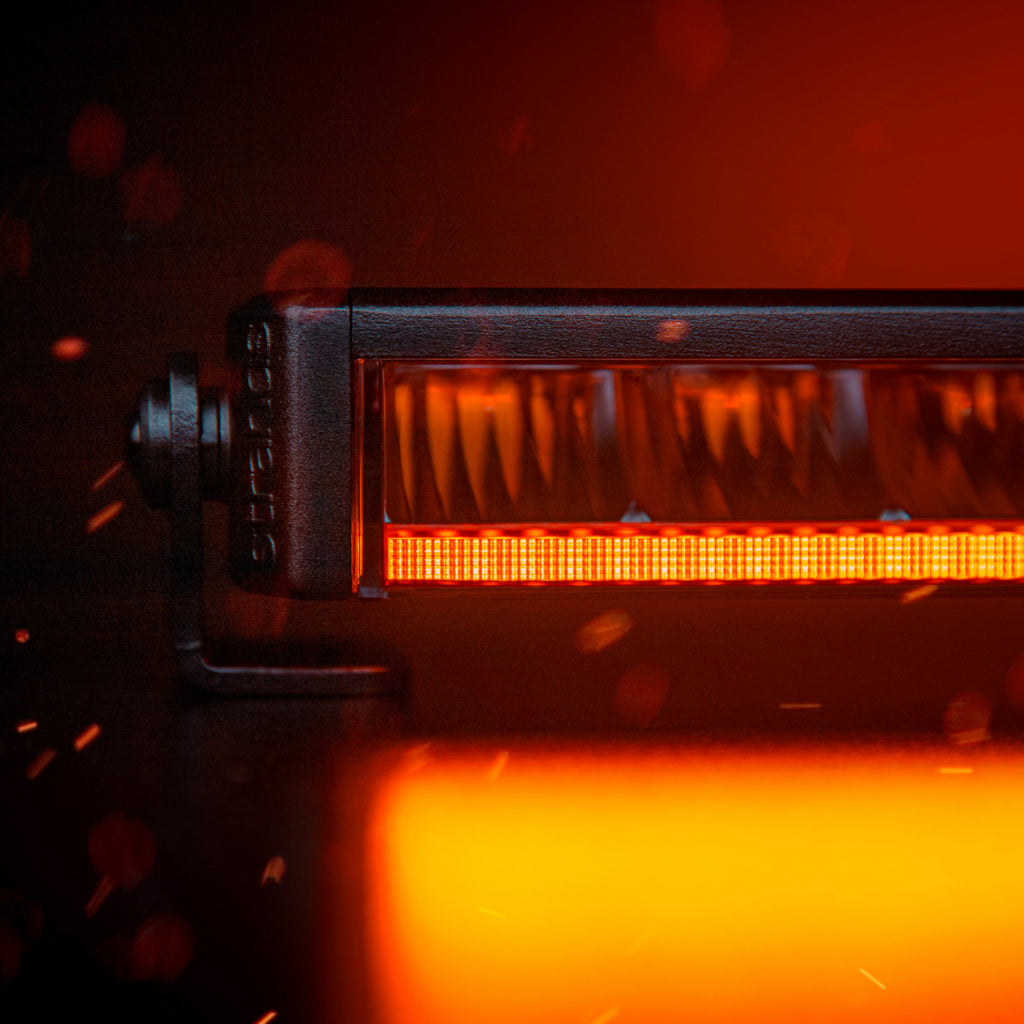

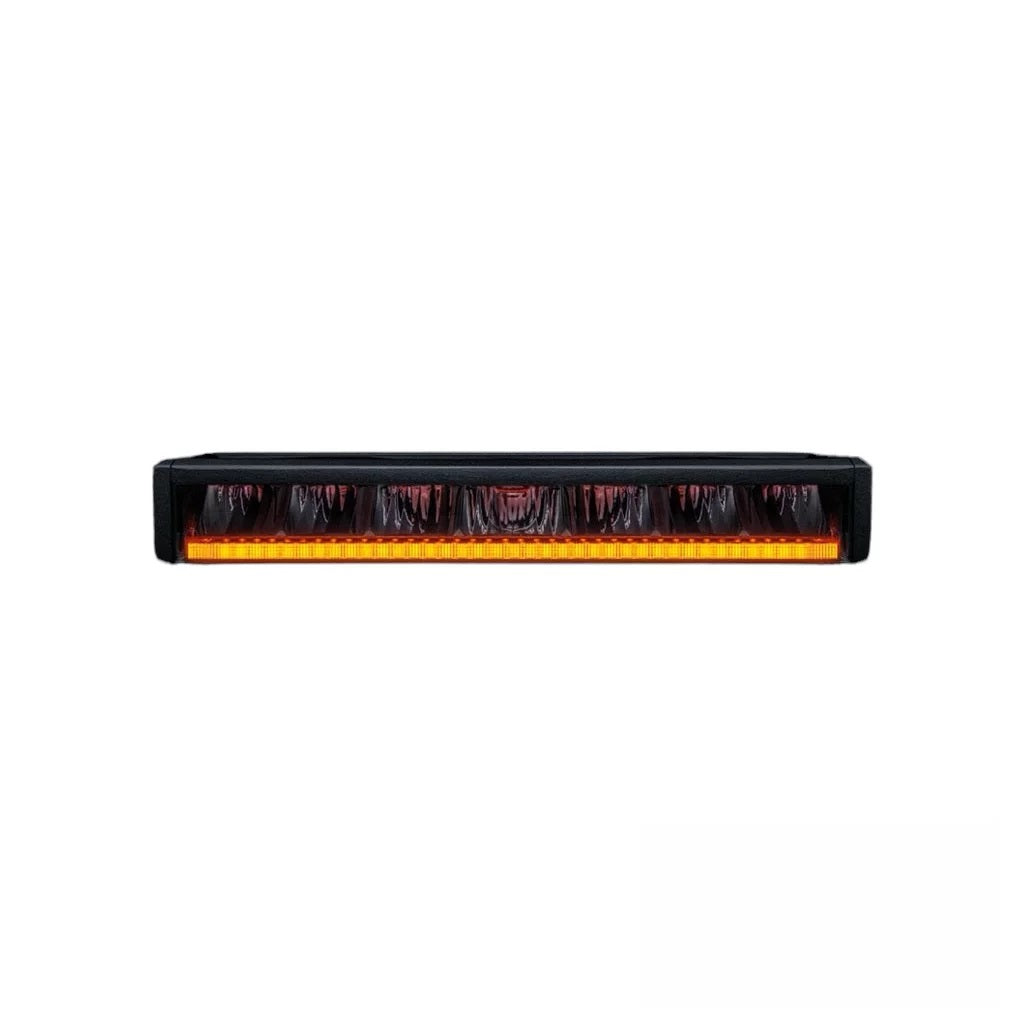

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.

Each component is important for the result, and we have developed the perfect LED bar based on our experience to protect you from the challenging environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof, meeting the highest IP standards for ultimate protection.

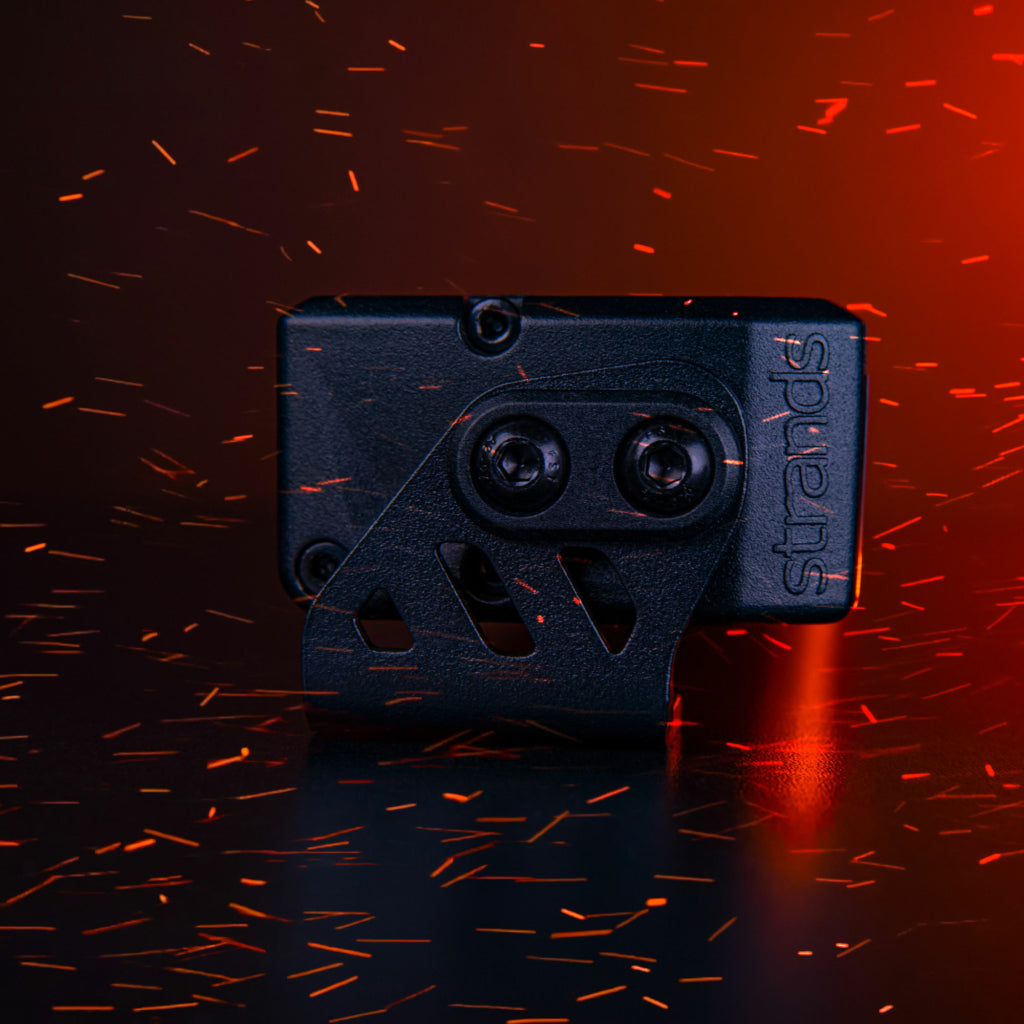

Installation is a breeze with two mounting options. Choose side brackets for a stable, traditional setup, or use adjustable brackets on the side, top, or below the LED bar to tailor the installation to your specific preferences. With included brackets, screws, and a 50 cm cable, securing it is a quick task. The package also included a DT-4 contact for easy connections. Its compact size is ideal for pickups and light commercial vehicles – a must-have guide for your next mission.

Type of Lamp: LED

Voltage (V DC): 10-48V DC

Theoretical effect (w) 12V: 72

Theoretical effect (w) 24V: 70

Consumption (w) 12V: 75

Consumption (w) 24V: 72

Functions: White position lights,Amber position lights,Driving lights

Theoretical lumen: 6200

Actual lumen: 5010

1 LUX @ m: 363

Kelvin: 6000

IP-class: 68

Color housing: Black

Color lens: Clear

Color LED´s: Amber & White

Beam pattern: Combo

Position light: Yes

Connection: DT4

Cable length (mm): 500

Material bracket: side bracket: 304 stainless steel, sliding bracket: Aluminium

Material housing/ chassi: Aluminium

Material lens: PC

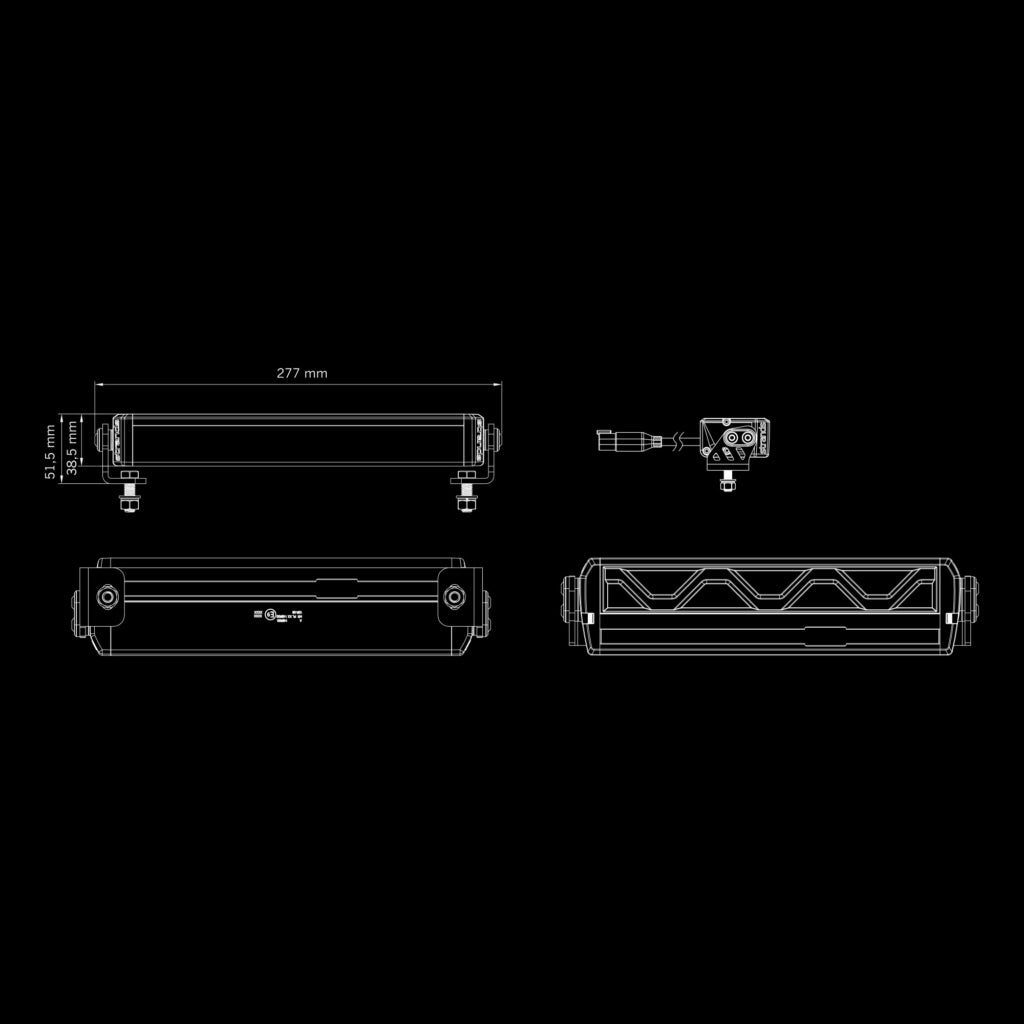

Length (mm): 277

Depth (mm): 70

Height (mm): 38,5

Height including bracket (mm): 56

CC (mm): 249

Operating temperature: -40 - +65°C

E-approved: Yes

According to regulation: ECE R148, R149

Reference number: 25

EMC: ECE R10
